PITT Cooking Systems - CIMA FRONT SIDE $5,576.00

PITT Cooking Systems - CIMA FRONT SIDE $5,576.00

$5,716.00USD
$5,716.00USD
Sale Sold out
Shipping calculated at checkout.
Color
Style

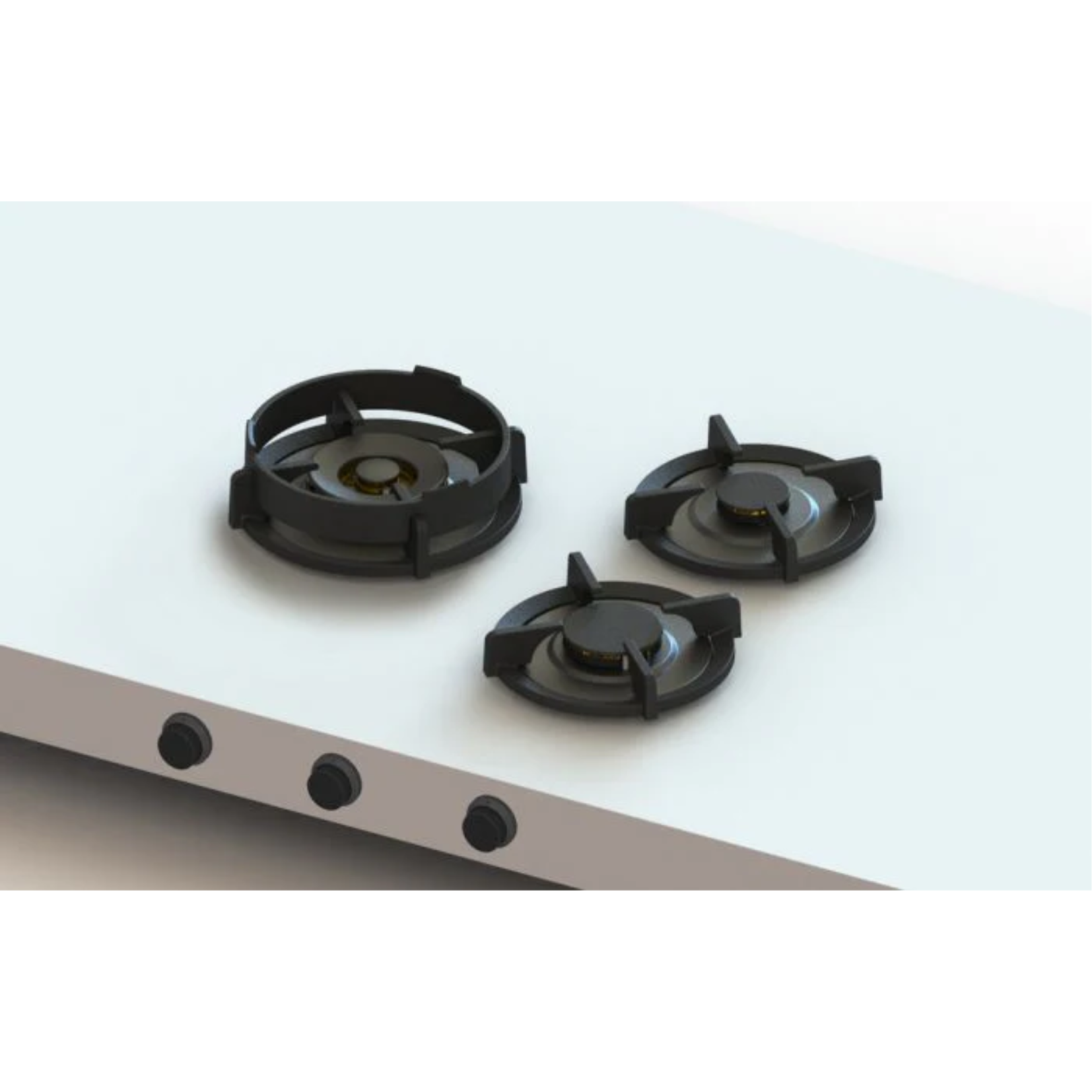

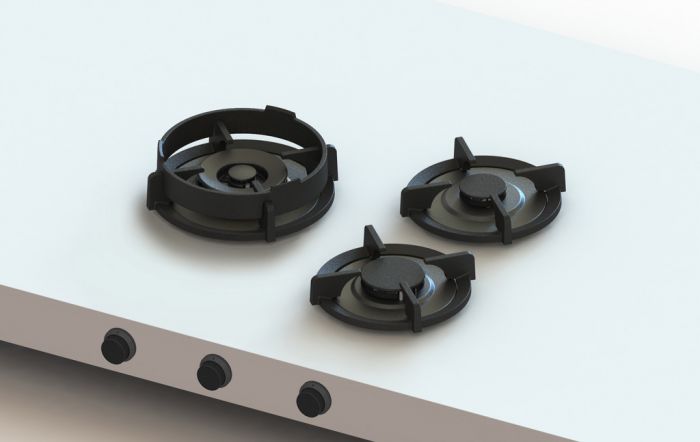

24 Inch Gas Cooktop with 3 Brass Burners, Automatic Spark Ignition, Double-Enamel Cast Iron Pan Supports, Controlled Power, Easy-to-Clean Parts, and Safety Shut-Off Control



PRODUCT DETAILS
Type of Gas Suitable:
Natural gas, LPG (Bottled gas)
Type of Gas Connection:
1/2
Styles Available:
Original (aluminum) & Professional (brass)
Burner Capacity:
1x small burner (0,3-2 kW), 1x medium burner (0,2-3 kW), 1x combined wok/simmer burner (0,2-5 kW)
Module Dimensions (Lx W x H):
19 4/5" x 20 49/50" x 3 1/2"
Number of Burners:
3
Position gas connection:
Top corner, Right
Cord Length:
59"
Wok Ring Included:
Only in Professional version
Control Type:
Knobs
Origin:
Holland
Finish Colour:
Black

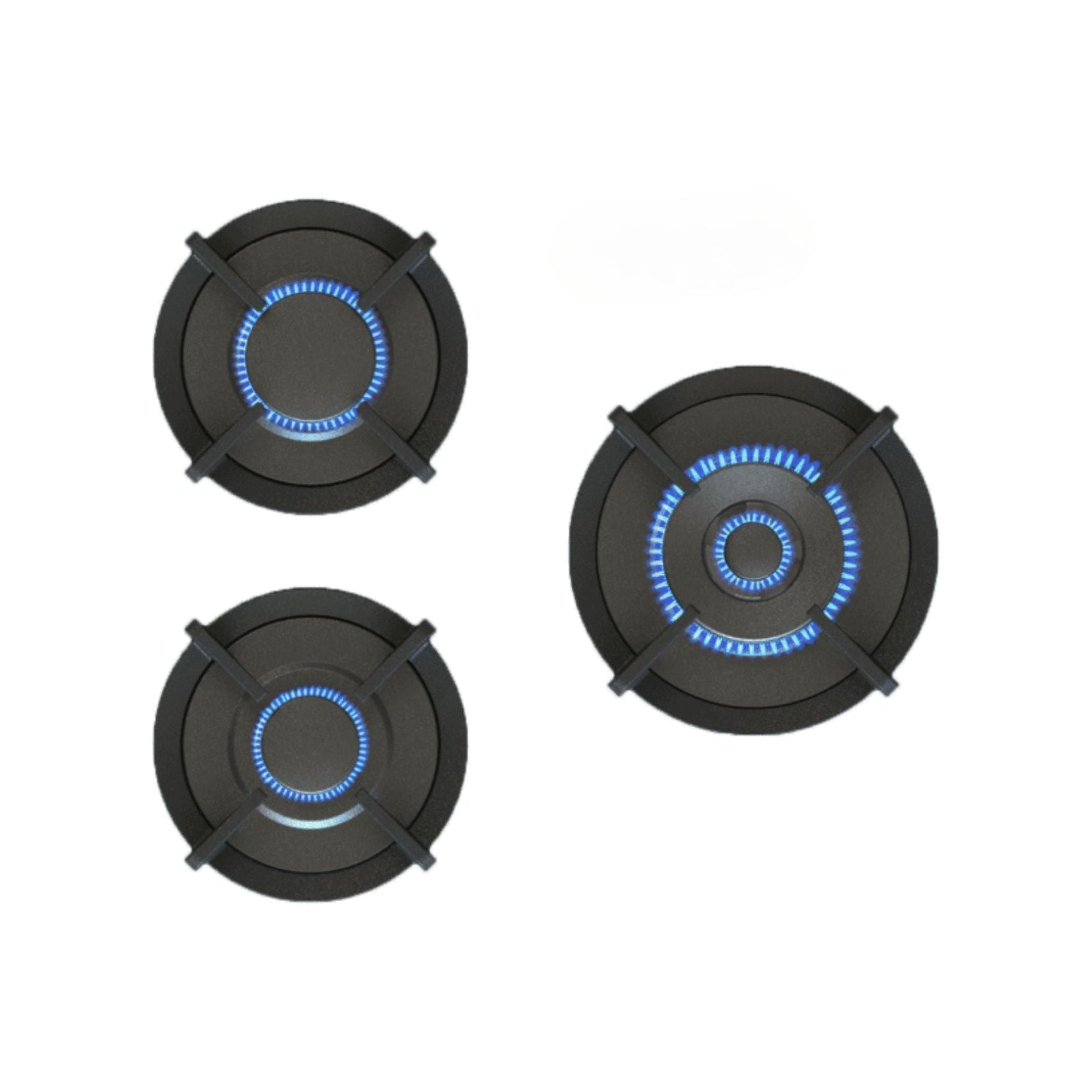

BURNER OUTPUT
Back Right Output:
10000
Front Right Output:
17000
Middle Center Burner:
6000
DESIGN INSTRUCTIONS
Minimum worktop depth:
23 3/5"
Minimum cabinet width:
23 3/5"
Worktop thickness (original material):
3937/25000" - 1 3/10"
Minimum C-measurement:
1 24/25"
Support bar needed:
Yes
ELECTRICAL SPECIFICATIONS
Volts:
110V
Amps:
15A
Frequency:
60Hz
WARRANTY
5 Years Guarantee:
Parts and Labor
WEIGHTS & DIMENSIONS
Approximate Shipping Weight:
50 lbs
Net Weight:
40 lbs
Width:
20 49/50"
Depth:
19 4/5"
Height:
3 1/2"
