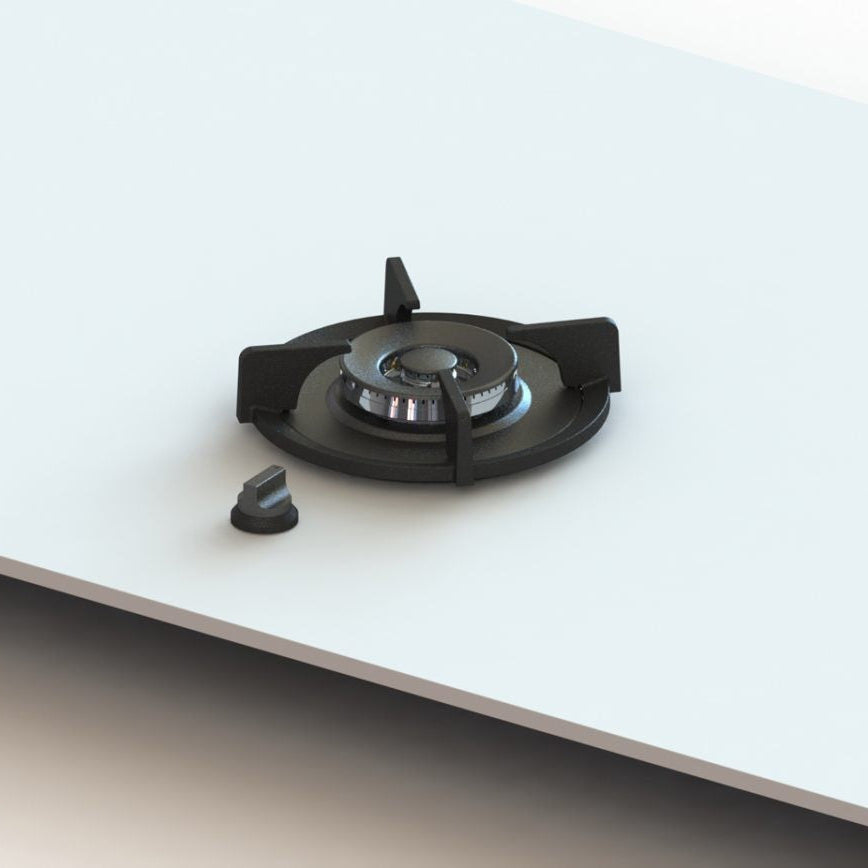

PITT Cooking - AZUMA TOP MOUNTED - from $2,099.00

PITT Cooking - AZUMA TOP MOUNTED - from $2,099.00

$2,199.00USD
$2,199.00USD
Sale Sold out
Shipping calculated at checkout.
Color
Style

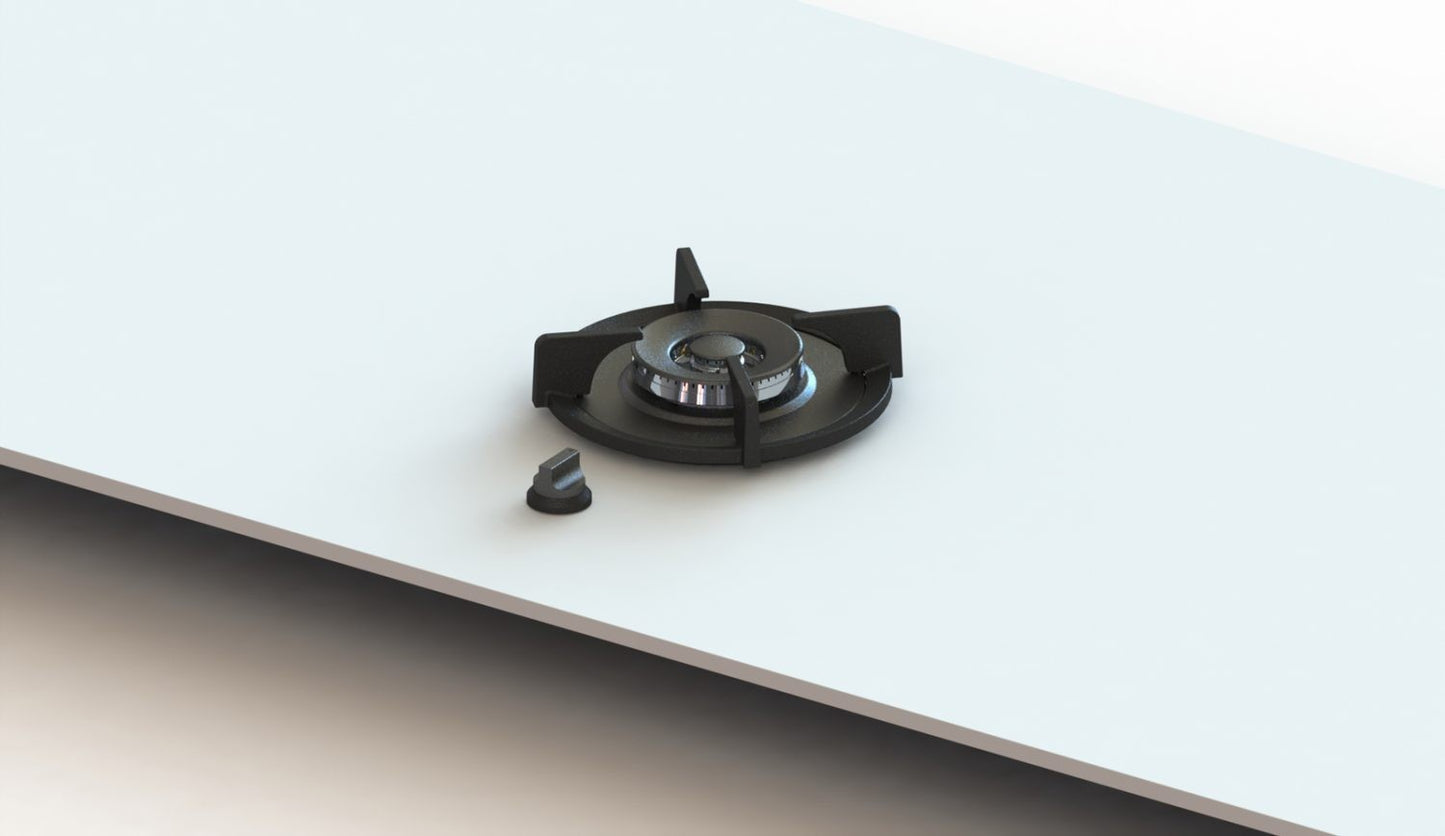

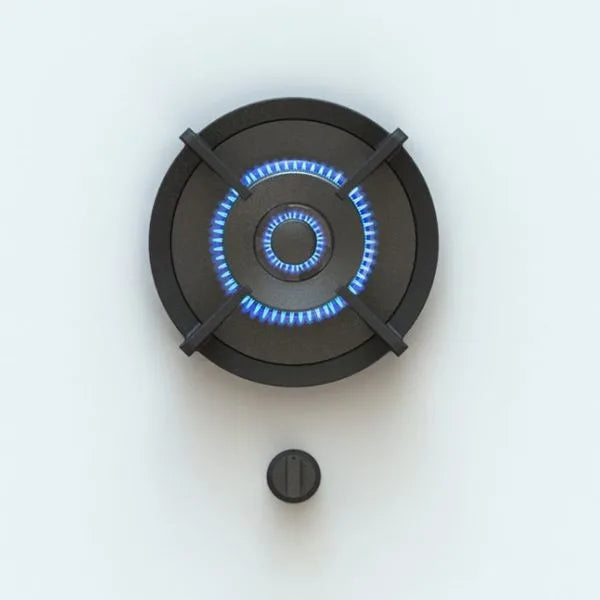

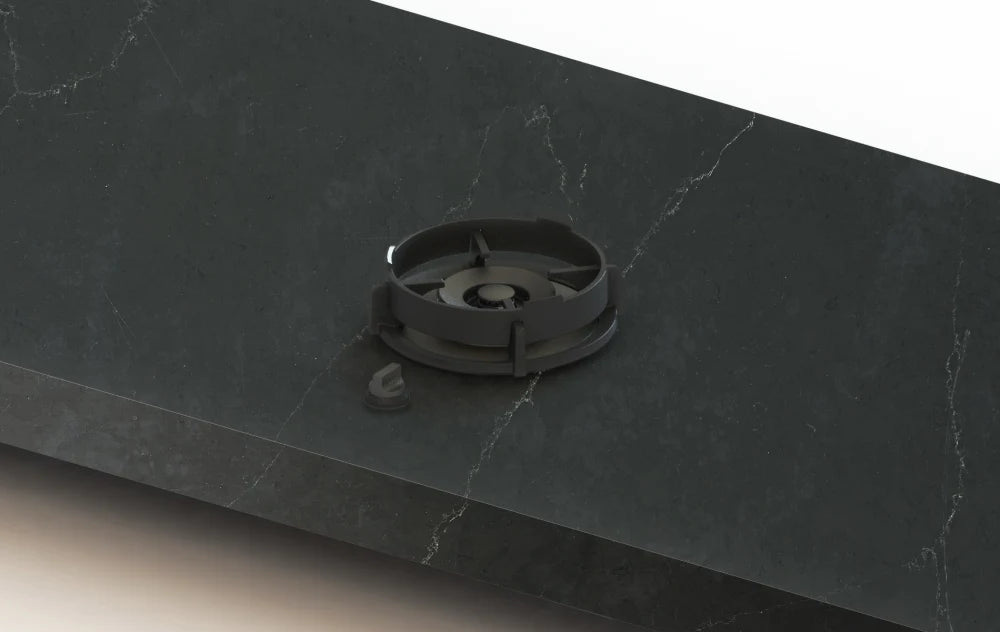

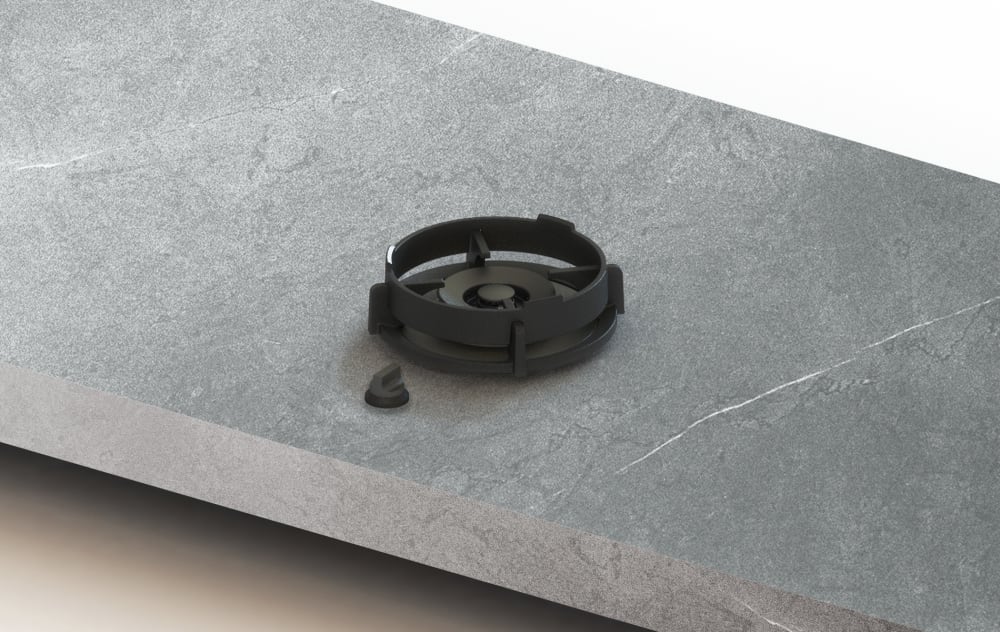

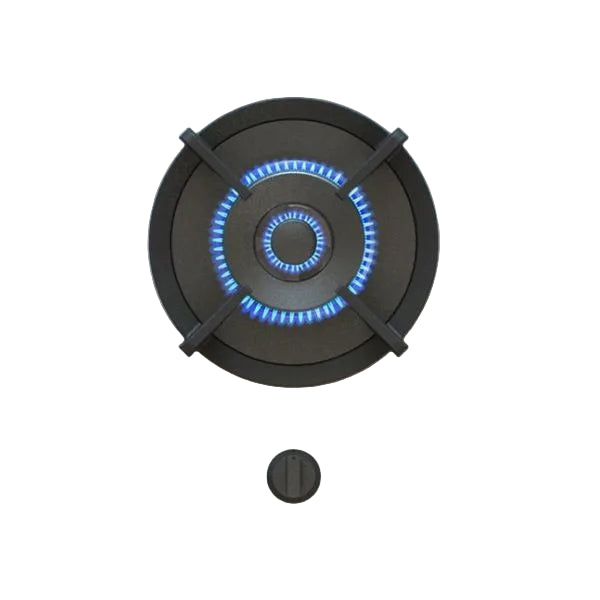

12 Inch Gas Cooktop with 650-17,000 BTU Single Brass Burner, Double-Enamel Cast Iron Pan Supports, Controlled Power, Easy-to-Clean Parts, and Safety Shut-Off Control

PRODUCT DETAILS
Type of Gas Suitable:
Aardgas, Natural gas, LPG (Bottled gas)
Type of Gas Connection:
1/2
Styles Available:
Original (aluminum) & Professional (brass)

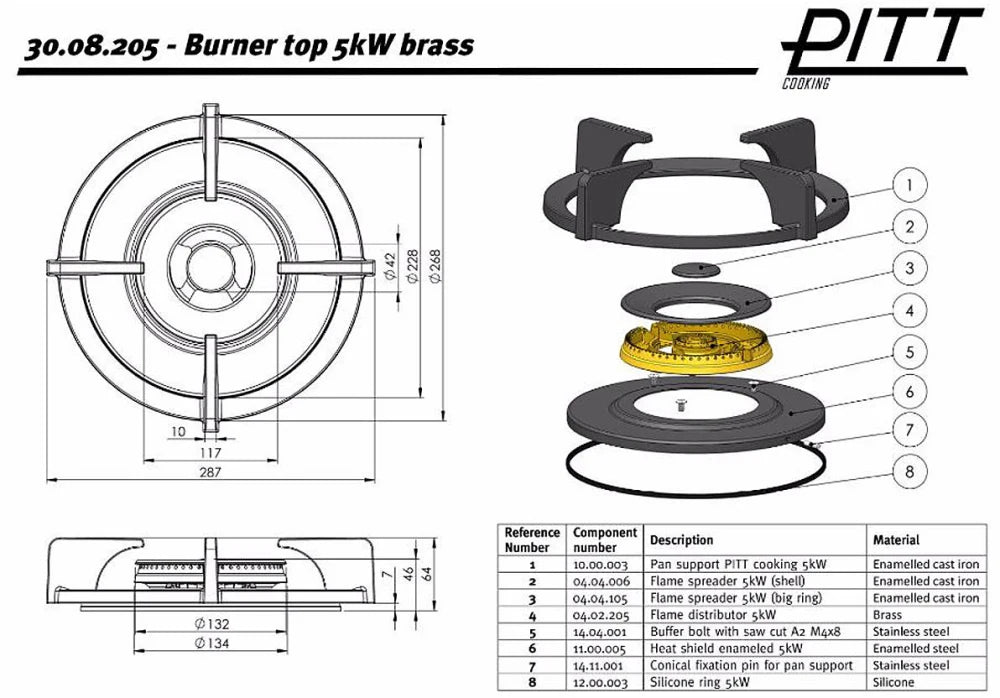

Burner Capacity:
1x combined wok/simmer burner (0,2-5 kW)

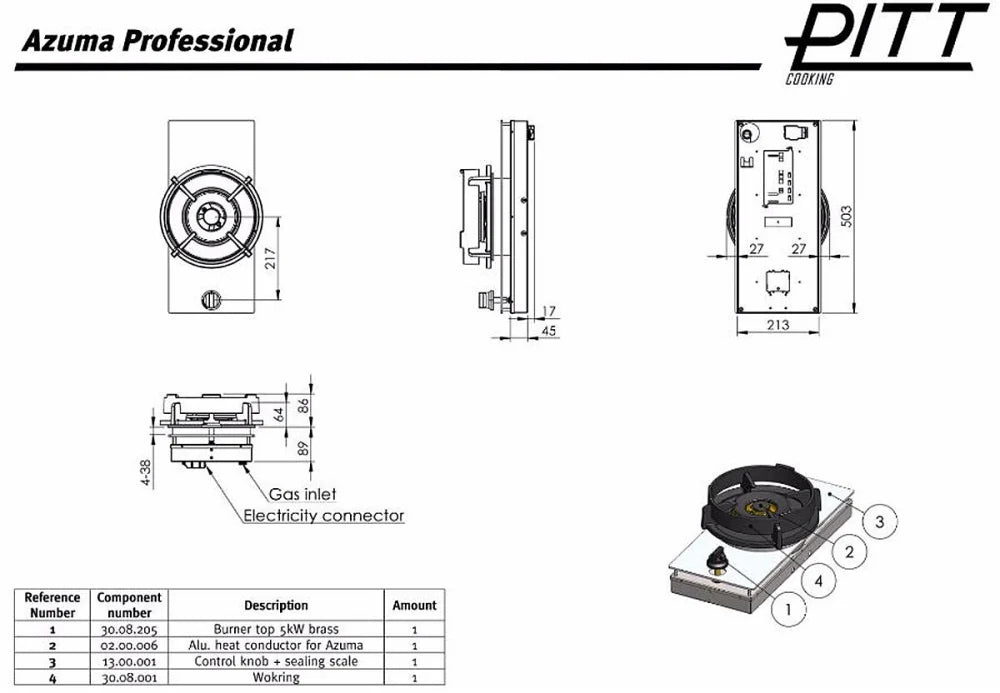

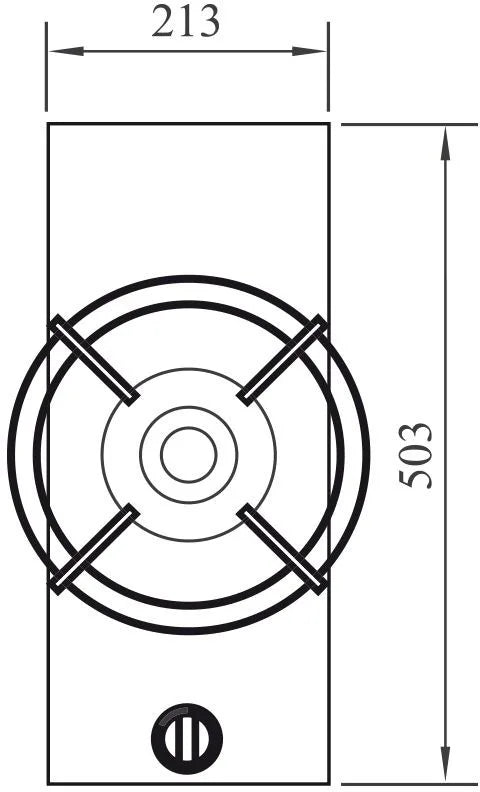

Module Dimensions (Lx W x H):
8 3/10" x 19 4/5" x 3 1/2"
Number of Burners:
1
Position gas connection:
Top corner, Right
Cord Length:
5 9/10"
Wok Ring Included:
Only in Professional version
Control Type:
Knobs
Origin:
Holland
Finish Colour:
Black
BURNER OUTPUT
Middle Center Burner:
17000

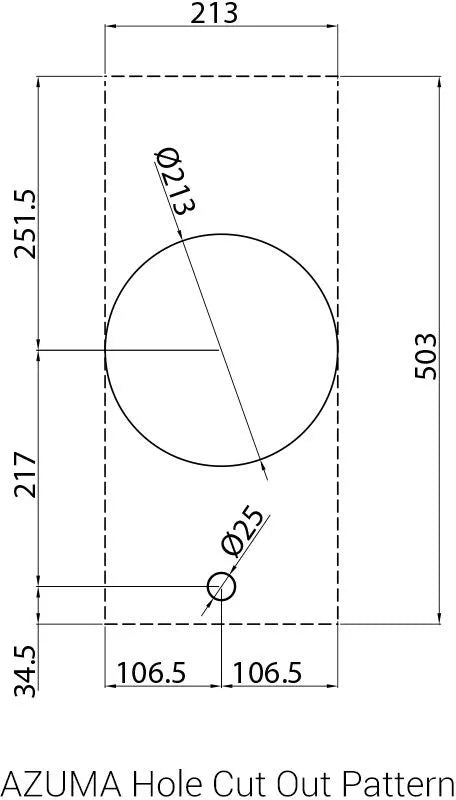

DESIGN INSTRUCTIONS
Minimum worktop depth:
23 3/5"
Minimum cabinet width:
11 4/5"
Worktop thickness (original material):
3937/25000" - 1 3/10"
Minimum C-measurement:
1 9/10"
Support bar needed:
Yes
ELECTRICAL SPECIFICATIONS
Volts:
120V
Amps:
15A
Frequency:
60Hz
WARRANTY
5 Years Guarantee:
Parts and Labor
WEIGHTS & DIMENSIONS
Approximate Shipping Weight:
30 lbs
Net Weight:
22 lbs
Exterior Width:
12"
Width:
19 4/5"
Depth:
8 3/10"
Height:
3 1/2"
